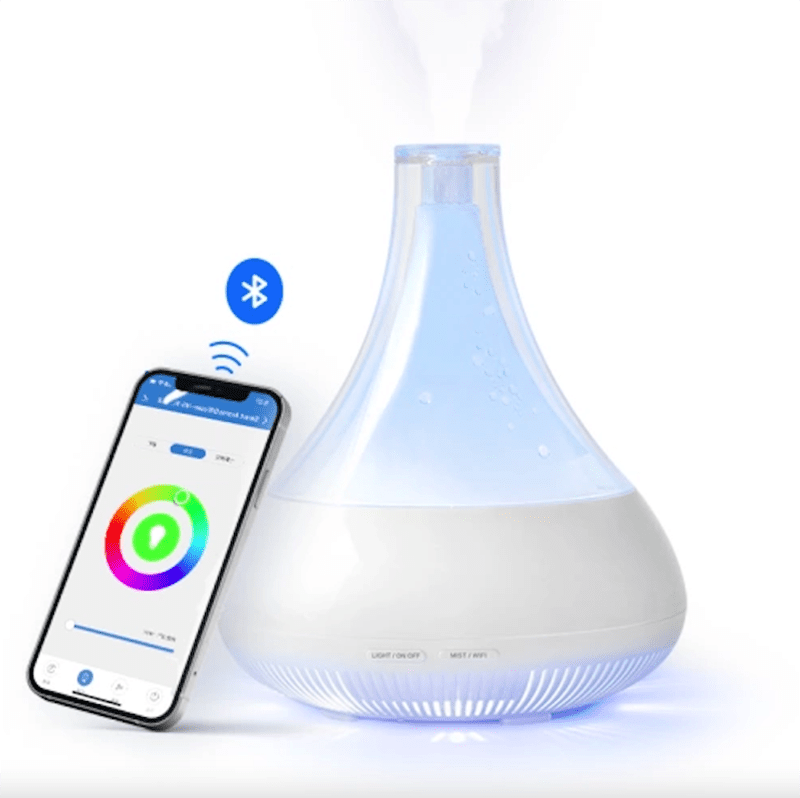

This new concept smart aroma diffuser with 350ml capacity, US/EU/AU/UK adaptor available

7 led lighting color, it could be connect with app control/Bluetooth.

Tuya App Operation

1. Search for “Tuya Smart” in each application market Or scan the following QR code to download and install.

2. Turn on the Tuya APP and the Bluetooth function of the mobile phone.

3. Press and hold the spray button of the machine for 2-3 seconds, it will beep twice to enter the Bluetooth connection mode，and the light flashes regularly.After the connection is successful, the indicator lights are all off, and it will automatically exit if there is no connection for 3 minutes.

4. Click Add Device, the device is discovered and added successfully.

5. Click “ ” to open the aroma diffuser and enter the working interface.

6. Click the spray switch to turn on or off the spray mode.

7. The spray gear can be selected from 1st gear and 2nd gear.

8. Countdown can be selected (cancel, 1h, 3h, 6h) spray work time.

9. Click the light switch to turn on or off the light mode.

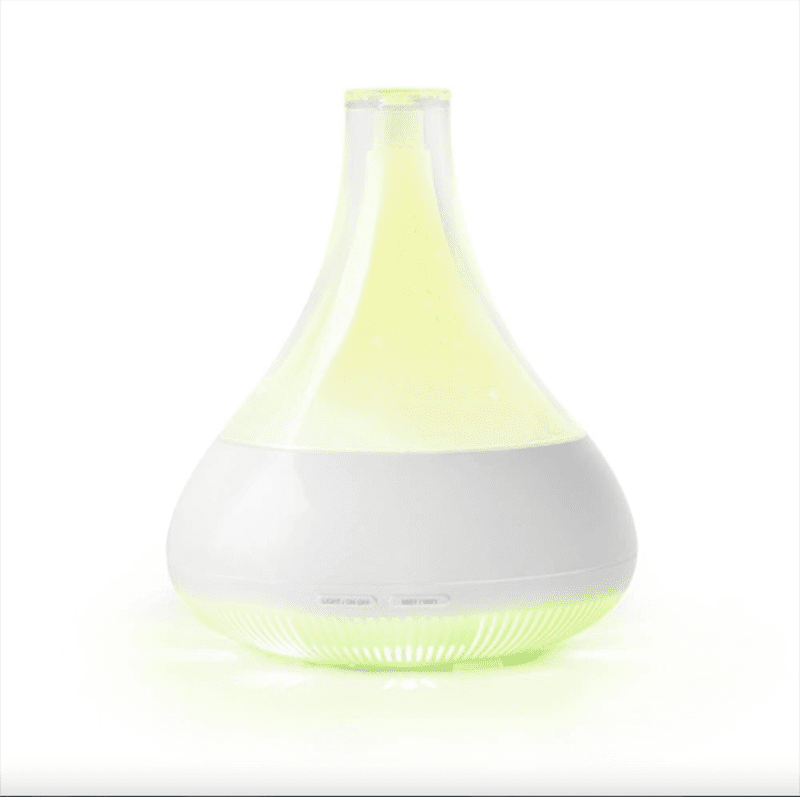

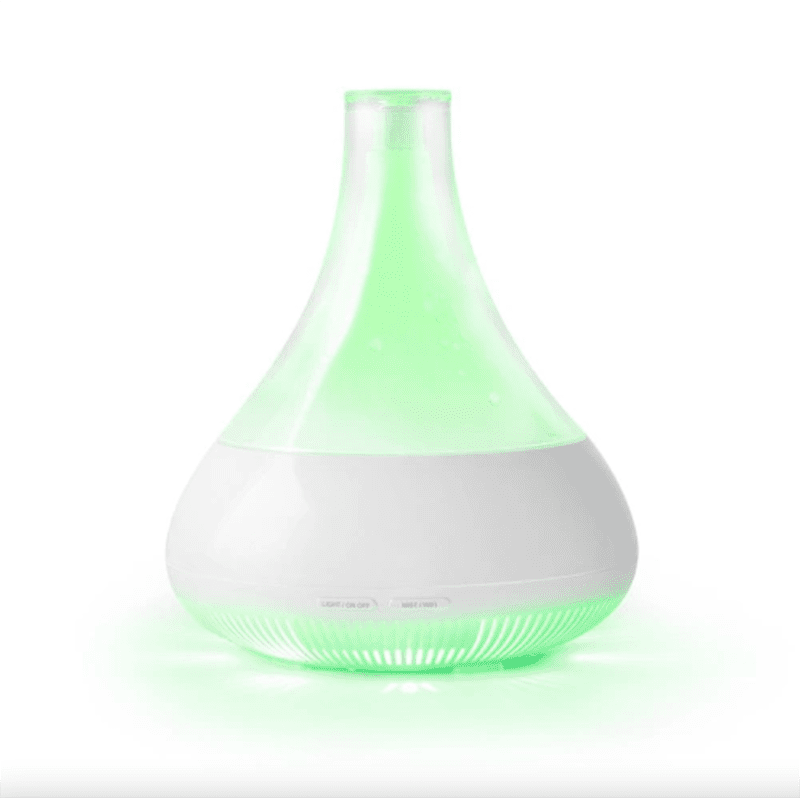

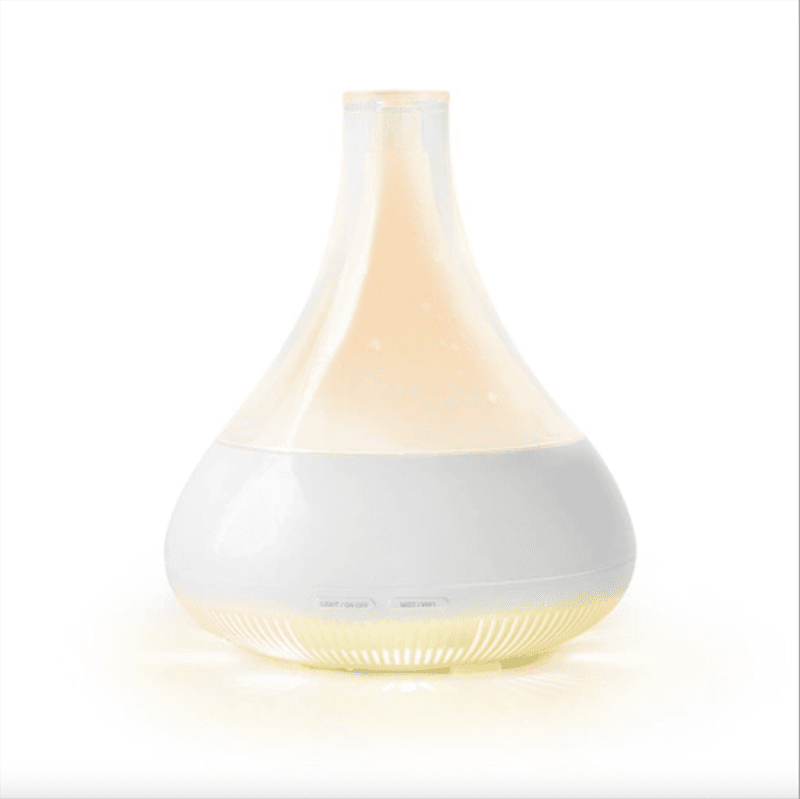

10. Lights can be selected (seven colors, colorful lights, night lights, scenes).

11. Click settings to enter “ device settings, light name, timing” .

12. Click on the timing to enter the setting (spray/light timing).

13. Click on the spray timing, you can set the start working time, Press and hold the left swipe to delete the timing.

14. Click on the light timing, you can set the start light time, Press and hold the left swipe to delete the timing.

Operation

1. Open the top cover.
2. Connect the DC plug of the adapter to the DC socket of the machine through the wire slot.
3. Add water to the water tank, do not exceed the maximum water level of 350ML.
4. Put 3-5 drops of essential oil into the water tank.
5. Close the cover.
6. Insert the adapter plug into the household power outlet.
7. Spray button: Press it once: one beep, the machine starts to work in small mist mode, which is continuous spray, Press twice: one beep, the machine starts to work in heavy fog mode, which is continuous spray.Press three times: one beep, the machine turns off the spray mode,Press and hold for 2-3 seconds: two beeps, enter the Bluetooth connection mode, the light flashes regularly, after the connection is successful, the indicator lights are all off, and it will automatically
exit if there is no connection for 3 minutes.
8. Light button: Press it once: a beep, the light will change color automatically.
Press twice: beep once to lock the current color.
Press three times: one beep, turn off the light.
Long press: two beeps, turn off the machine.
9. When the water tank is short of water, the machine will automatically shut down.
